    Electric Full Cassette Retractable Awning Outdoor

    Ask Lasest Price
    Brand Name : DM AWNING
    Model Number : dm820
    Certification : CE
    Price : $299.00
    Payment Terms : L/C, D/A, D/P
    • Product Details
    • Company Profile

    Electric Full Cassette Retractable Awning Outdoor

    Electric Full Cassette Retractable Awning Outdoor Cassette Retractable Awning


    Electric Full Cassette Retractable Awning Outdoor

    Electric Full Cassette Retractable Awning Outdoor


    Full Cassette Awning Feature:

    *New Generation of Full cassette Aluminum Retractable Awning with exquisit and high quality aluminum alloy;
    * Durable & high strength triple cable arms with thicker and wider aluminum profile make the force of the arm great enhanced;
    *Safe, enviromental protection,enery conservation materials for the profile;
    *LED strips Arms with adjustable brightness;
    *One click remote controlled for freely retact;
    *Equipped with patented Balance System for perfectly folding the awning into the cassette;
    *Max size per Unit: 6m(width)* 3m(Projection)
    *When close,the whole awning is retracted into the cassette to avoid the fabric to get dirty;
    *Stainless steel screw bolts,high temperature powder coated finish.

    Electric Full Cassette Retractable Awning Outdoor

    Speclficatlon:


    Aluminium Full Cassette Retractable Awning

    Roller:70mm/78mm Steel

    Front Bar:Alu.125x60mm

    Arm:50x27/60x27mm

    Gear Box:1:11

    Adjusted-angle:5°to 75°

    Frame:Outdoor Powder Coated

    Connector:Alu-Die-Cast

    Fabric:Polyester or Acrylic

    Packing:Each pc/Carton

    Max size:Width 6M,Projection 3M

    Arms Available:1.5M,2.0M,2.5M,3M

    Electric Full Cassette Retractable Awning Outdoor

    Electric Full Cassette Retractable Awning Outdoor

    Electric Full Cassette Retractable Awning Outdoor

    Electric Full Cassette Retractable Awning Outdoor

    Electric Full Cassette Retractable Awning Outdoor

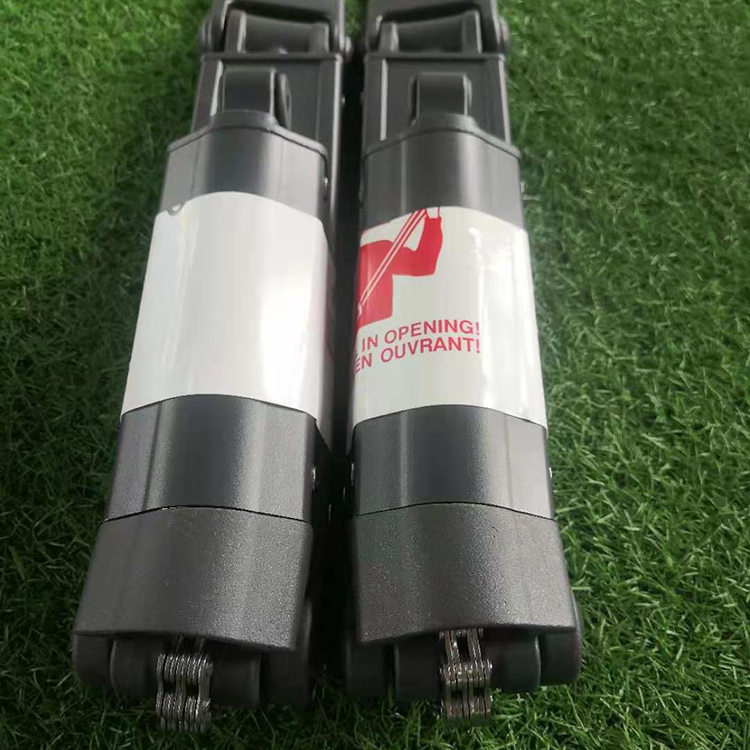

    Retractable awning arms assembly

    There's different size for awning arms from 1.5 to 3 for normal arms, and 3.5m,4.0m for stronger arms.

    Awning Arm shoulder with very strong of connector parts

    Innovatively designed, awning arm shoulder consists of three components of high strength extruded aluminum that work in conjunction to provide lateral and vertical stability, and are virtually unbreakable. a factory default setting of 25 degrees, and an optional 5 to 75 degree setting after a simple adjustment.


    Also have general retractable awning arm with chain arm


    Size: 1.5M,2.0M,2.5M

    Extreme awning arm employs extruded aluminum profiles, strong die-cast and thermally treated aluminum elbows with PVC protected double cables. The heavy-duty springs inside the arms apply tremendous force to hold the fabric tight when the awning is extended.

    Fabric options:
