PROFESSIONAL MANUFACTURE &WHOLESALES AWNING PARTS ,AWNING SYSTEM AND ACCESSAIRES .
10 Years
| Ask Lasest Price | |
| Brand Name : | DM |
| Model Number : | DM550 |
| Delivery Time : | 7~15 workdays |
| Certification : | CE |
| Price : | USD$200~500/SET |
| Payment Terms : | Western Union, L/C, T/T |
| Supply Ability : | 300SETS /WEEK |

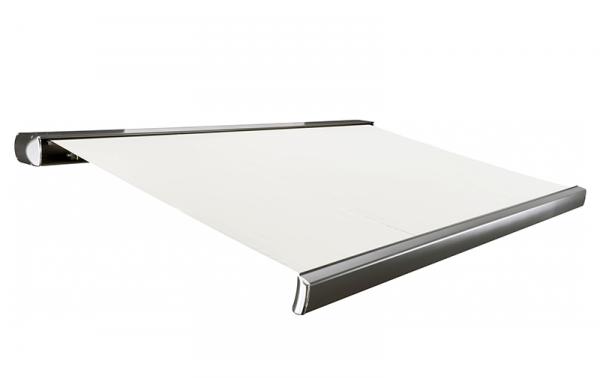

Motorized Full Cassette High quality Retractable awning canopy
Product Description
Maximum single awning size:6M(width)x2.5M(projection) for stainless double wire arm
| Description: | Aluminum Full Cassette Retractable Awning |
| Roller: | dia 70mm steel |
| Front Bar: | Alu 125*60mm |
| Arm: | 50*27mm/60*27mm |
| Gear BOX: | 1:11 |
| Operation: | motorized or Manual or both |
| Adjusted Angle: | 5~75 degree |
| Frame: | 6306T5 Alu with outdoor powder coated |
| Fabric: | Polyester /Acrylic/Para |
| Packing: | each set /carton |
| Max Size/Unit: | width 6m* projection 2.5m |
| Arms Available: | 1.5/2.0/2.5/3m |
| HS code: | 6306120000 |

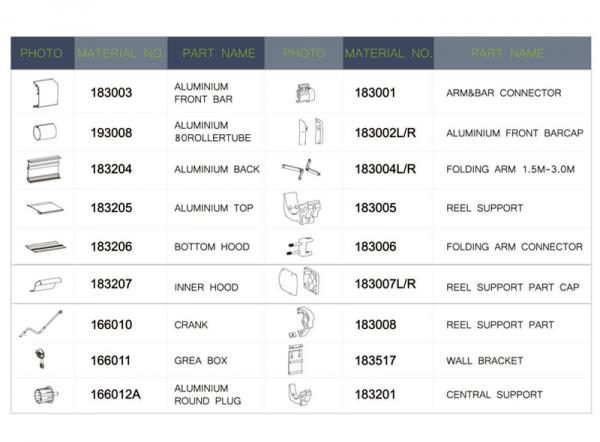

Parts List:
Fabric Inf & colors available:
| 280g/m 2 ,level 4 for polyester,PU coated,waterproof,anti-UV |
| 300g/m 2 ,level 5~6 for domestical acrylic,PU coated,waterproof,anti-UV |
| 300g/m 2 ,level 7~8 for solution dyed acrylic,teflon coated,waterproof,anti-UV |
Part of colors for your reference, for more color,pls contact us!
Recommended Manintance:
| Awning fabric should be cleaned regularly. |
| Remove surface marks with a brush. |
| Never use any other chemical product to clean the awning. |
| Close the awning in extreme weather of heavy wind or rain.The function of awning is used to protect people from sunshine. |
| Not to roll up the awning when it is wet, but only if necessary, open it to make it dry. |
| To avoid the water puddles in the middle of awning, always keeping the fabric in tension and with an adequate slope or pitch angle. |
| It is recommended to mount the awning on the solid concrete wall or bricks for better support |
|
|
