PROFESSIONAL MANUFACTURE &WHOLESALES AWNING PARTS ,AWNING SYSTEM AND ACCESSAIRES .
10 Years
| Ask Lasest Price | |
| Brand Name : | DM |

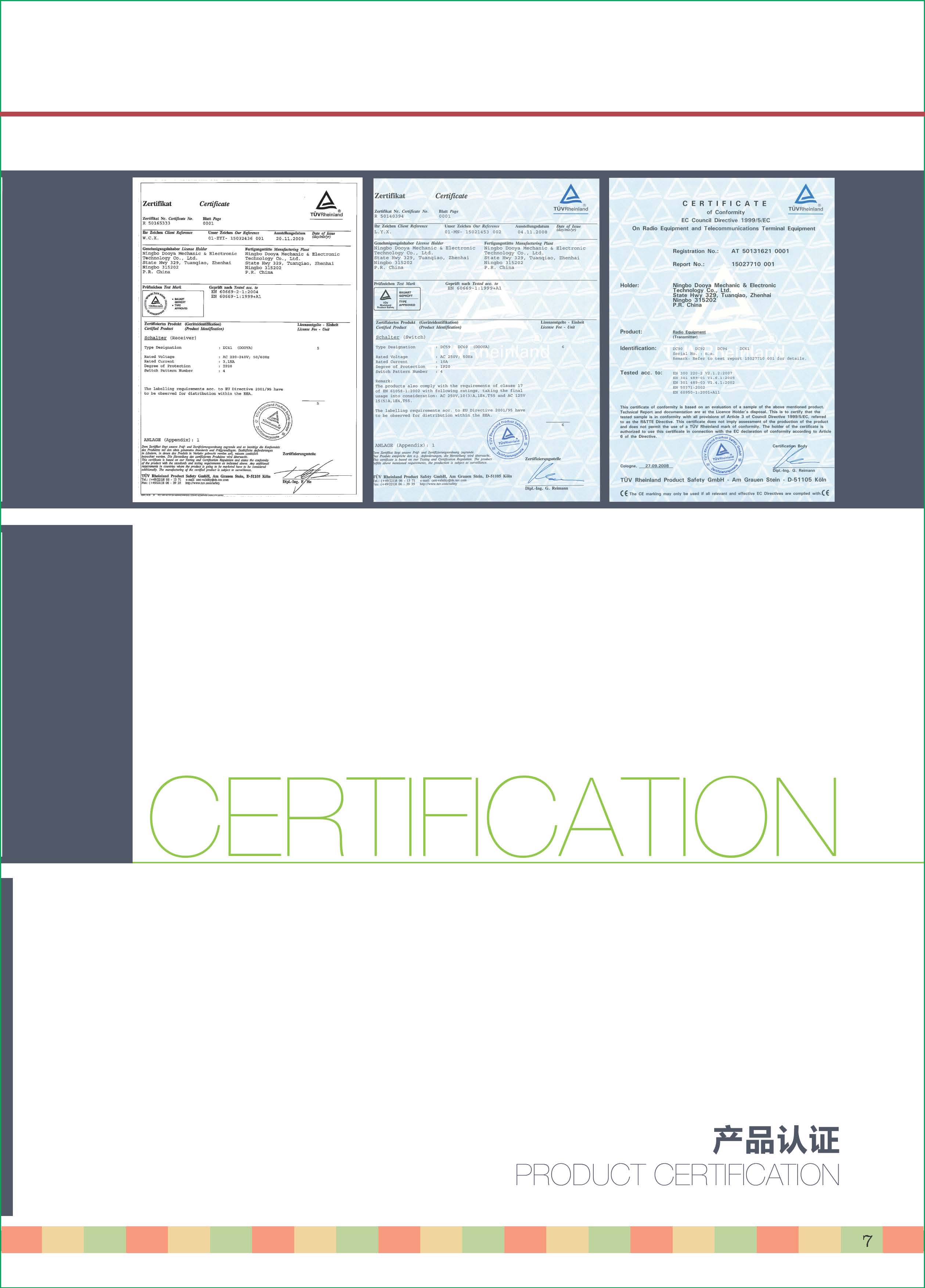

| Certification : | CE |
| Price : | US $300-420 |
| Delivery Time : | 5-8 work days |
| Model Number : | DM-580 B2 |
| Payment Terms : | Western Union, L/C, T/T, T/T |
| Supply Ability : | 500SETS/WEEK |

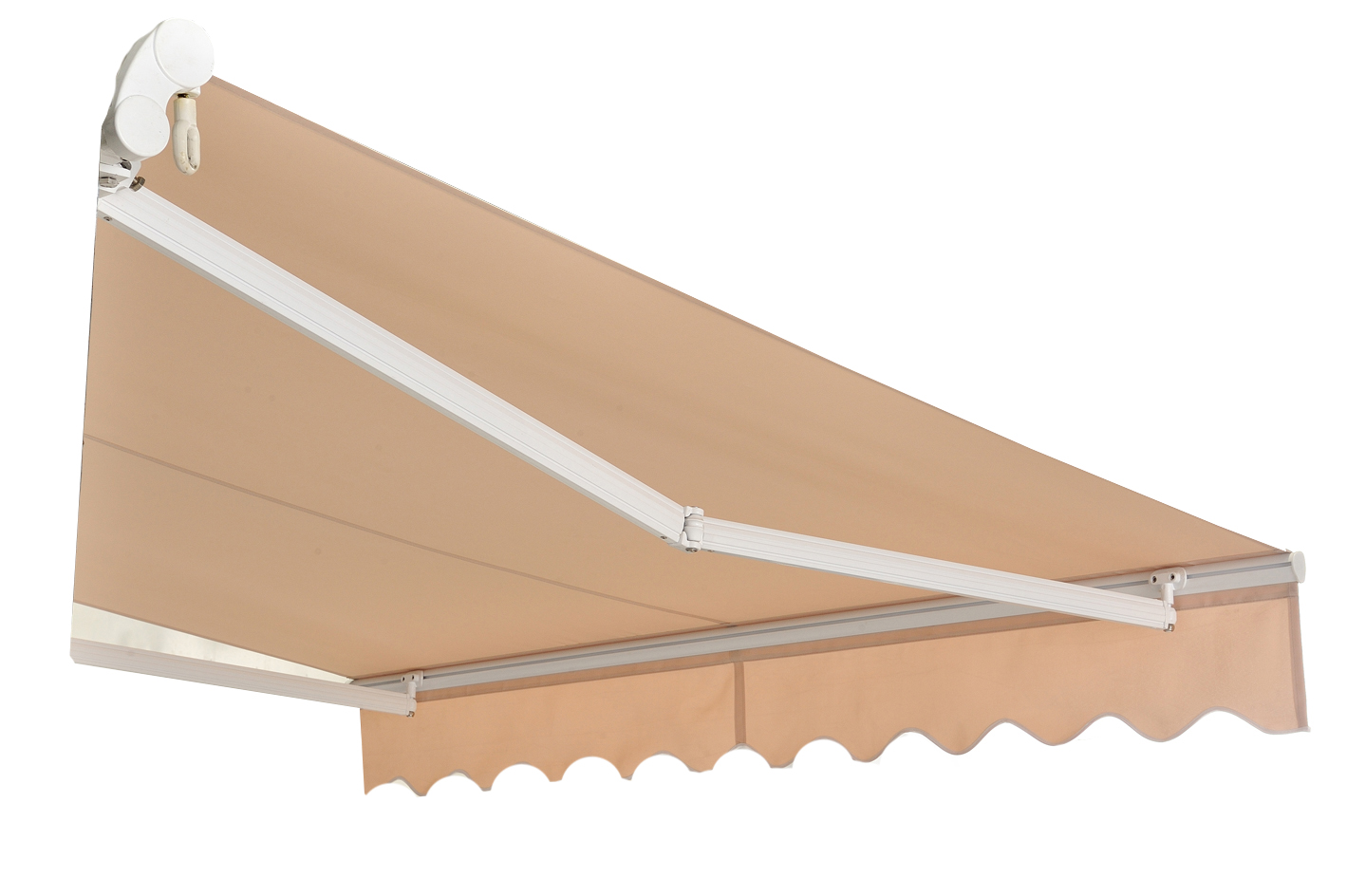

Automatic Aluminum Waterproof Semi- Cassette Balcony Retractable Awning
Advantages:
*can prevent damage to your furniture,and flooring, it can also help with reducing energy consumption by lowering temperatures up to around 30% inside your home.
*Easy to assemble and clean
*Protect your skin from harmful UV rays by 95%
*Multi-sets joint available
Other Parameters:
| Type: | GR580B2 Aluminum DM retractable awning |
| Roller: | Dia 70mm, 80mm Alu. or steel |
| Front BAR: | Alu.95*68mm |
| Square bar: | steel 40*40mm |
| Arm: | 55*27mm/60*30mm |
| Enhanced folding arm: | 65*35mm/80*37mm |
| Gear Box: | 1:11 |
| Adjusted-angle: | 5 to 75 degree |
| Frame: | 6063T5 Alu with outdoor powder coated |
| Fabric: | Polyester or Acrylic or Para(details as below) |
| Maxmum size/set: | Width 6M, Projection:4M |
| folding arm size available: | 1.5m,2m,2.5m,3m,3.5m,4m |
| Driver: | tubular motor |
| Packing: | each pcs/carton seaworthy package |
| .Control: | Manual operation by hand crank or remote control |
Detailed Fabric Information:
280g/m 2 ,level 4 for polyester,PU coated,waterproof,anti-UV
300g/m 2 ,level 5~6 for domestical acrylic,PU
coated,waterproof,anti-UV
300g/m 2 ,level 7~8 for solution dyed acrylic,teflon
coated,waterproof,anti-UV
Half Cassette Awning (with flashing covers)
Strong Front Bar with built-in rain channel Awning
A part of patterns for selection,for more colors, pls contact us
Advisable Maintenance
Awning fabric should be cleaned regularly.
Remove surface marks with a brush.
Never use any other chemical product to clean the awning.
Close the awning in extreme weather of heavy wind or rain.The
function of awning is used to protect people from sunshine.
Not to roll up the awning when it is wet, but only if necessary,
open it to make it dry.
To avoid the water puddles in the middle of awning, always keeping
the fabric in tension and with an adequate slope or pitch angle.
It is recommended to mount the awning on the solid concrete wall or
bricks for better support
|
|
